Rings
VINYL INSULATED
|
WIRE RANGE A.W.G. |
STUD SIZE |
ELECTRICAL CURRENT |
VOLTS |
INSULATION MATERIAL |
|
22-16 |
#4 |
19 amperes |
600V |
vinyl |
|
22-16 |
#6 |
19 amperes |
600V |
vinyl |
|
22-16 |
#8 |
19 amperes |
600V |
vinyl |
|
22-16 |
#10 |
19 amperes |
600V |
vinyl |
|
22-16 |
1/4″ |
19 amperes |
600V |
vinyl |
|
22-16 |
5/16″ |
19 amperes |
600V |
vinyl |
|
22-16 |
3/8″ |
19 amperes |
600V |
vinyl |
|
16-14 |
#4 |
27 amperes |
600V |
vinyl |
|
16-14 |
#6 |
27 amperes |
600V |
vinyl |
|
16-14 |
#8 |
27 amperes |
600V |
vinyl |
|
16-14 |
#10 |
27 amperes |
600V |
vinyl |
|
16-14 |
1/4″ |
27 amperes |
600V |
vinyl |
|
16-14 |
5/16″ |
27 amperes |
600V |
vinyl |
|
16-14 |
3/8″ |
27 amperes |
600V |
vinyl |
|
12-10 |
#6 |
48 amperes |
600V |
vinyl |
|
12-10 |
#8 |
48 amperes |
600V |
vinyl |
|
12-10 |
#10 |
48 amperes |
600V |
vinyl |
|
12-10 |
1/4″ |
48 amperes |
600V |
vinyl |
|
12-10 |
5/16″ |
48 amperes |
600V |
vinyl |
|
12-10 |
3/8″ |
48 amperes |
600V |
vinyl |
|
12-10 |
1/2″ |
48 amperes |
600V |
vinyl |
NYLON INSULATED
|
WIRE RANGE A.W.G. |
STUD SIZE |
ELECTRICAL CURRENT |
VOLTS |
INSULATION MATERIAL |
|
22-16 |
#4 |
19 amperes |
600V |
nylon |
|
22-16 |
#6 |
19 amperes |
600V |
nylon |
|
22-16 |
#8 |
19 amperes |
600V |
nylon |
|
22-16 |
#10 |
19 amperes |
600V |
nylon |
|
22-16 |
1/4″ |
19 amperes |
600V |
nylon |
|
22-16 |
5/16″ |
19 amperes |
600V |
nylon |
|
22-16 |
3/8″ |
19 amperes |
600V |
nylon |
|
16-14 |
#4 |
27 amperes |
600V |
nylon |
|
16-14 |
#6 |
27 amperes |
600V |
nylon |
|
16-14 |
#8 |
27 amperes |
600V |
nylon |
|
16-14 |
#10 |
27 amperes |
600V |
nylon |
|
16-14 |
1/4″ |
27 amperes |
600V |
nylon |
|
16-14 |
5/16″ |
27 amperes |
600V |
nylon |
|
16-14 |
3/8″ |
27 amperes |
600V |
nylon |
|
12-10 |
#6 |
48 amperes |
600V |
nylon |
|
12-10 |
#8 |
48 amperes |
600V |
nylon |
|
12-10 |
#10 |
48 amperes |
600V |
nylon |
|
12-10 |
1/4″ |
48 amperes |
600V |
nylon |
|
12-10 |
5/16″ |
48 amperes |
600V |
nylon |
|
12-10 |
3/8″ |
48 amperes |
600V |
nylon |
|
12-10 |
1/2″ |
48 amperes |
600V |
nylon |
Heat Shrink
|
WIRE RANGE A.W.G. |
STUD SIZE |
ELECTRICAL CURRENT |
VOLTS |
INSULATION MATERIAL |
|
22-16 |
#6 |
19 amperes |
600V |
Heat Shrink |
|
22-16 |
#8 |
19 amperes |
600V |
Heat Shrink |
|
22-16 |
#10 |
19 amperes |
600V |
Heat Shrink |
|
22-16 |
1/4″ |
19 amperes |
600V |
Heat Shrink |
|
22-16 |
5/16″ |
19 amperes |
600V |
Heat Shrink |
|
22-16 |
3/8″ |
19 amperes |
600V |
Heat Shrink |
|
16-14 |
#6 |
27 amperes |
600V |
Heat Shrink |
|
16-14 |
#8 |
27 amperes |
600V |
Heat Shrink |
|
16-14 |
#10 |
27 amperes |
600V |
Heat Shrink |
|
16-14 |
1/4″ |
27 amperes |
600V |
Heat Shrink |
|
16-14 |
5/16″ |
27 amperes |
600V |
Heat Shrink |
|
16-14 |
3/8″ |
27 amperes |
600V |
Heat Shrink |
|
12-10 |
#6 |
48 amperes |
600V |
Heat Shrink |
|
12-10 |
#8 |
48 amperes |
600V |
Heat Shrink |
|
12-10 |
#10 |
48 amperes |
600V |
Heat Shrink |
|
12-10 |
1/4″ |
48 amperes |
600V |
Heat Shrink |
|
12-10 |
5/16″ |
48 amperes |
600V |
Heat Shrink |
|
12-10 |
3/8″ |
48 amperes |
600V |
Heat Shrink |

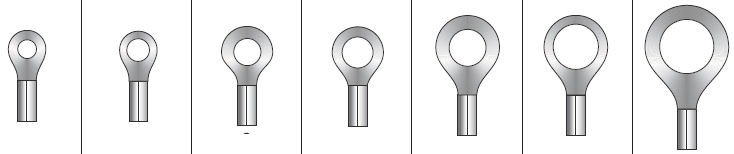

Bare
|
WIRE RANGE A.W.G. |
STUD SIZE |
ELECTRICAL CURRENT |
VOLTS |
INSULATION MATERIAL |
|
22-16 |
#4 |
19 amperes |
600V |
Bare |
|
22-16 |
#6 |
19 amperes |
600V |
Bare |
|
22-16 |
#8 |
19 amperes |
600V |
Bare |
|
22-16 |
#10 |
19 amperes |
600V |
Bare |
|
22-16 |
1/4″ |
19 amperes |
600V |
Bare |
|
22-16 |
5/16″ |
19 amperes |
600V |
Bare |
|
22-16 |
3/8″ |
19 amperes |
600V |
Bare |
|
16-14 |
#4 |
27 amperes |
600V |
Bare |
|
16-14 |
#6 |
27 amperes |
600V |
Bare |
|
16-14 |
#8 |
27 amperes |
600V |
Bare |
|
16-14 |
#10 |
27 amperes |
600V |
Bare |
|
16-14 |
1/4″ |
27 amperes |
600V |
Bare |
|
16-14 |
5/16″ |
27 amperes |
600V |
Bare |
|
16-14 |
3/8″ |
27 amperes |
600V |
Bare |
|
12-10 |
#6 |
48 amperes |
600V |
Bare |
|
12-10 |
#8 |
48 amperes |
600V |
Bare |
|
12-10 |
#10 |
48 amperes |
600V |
Bare |
|
12-10 |
1/4″ |
48 amperes |
600V |
Bare |
|
12-10 |
5/16″ |
48 amperes |
600V |
Bare |
|
12-10 |
3/8″ |
48 amperes |
600V |
Bare |
|
12-10 |
1/2″ |
48 amperes |
600V |
Bare |

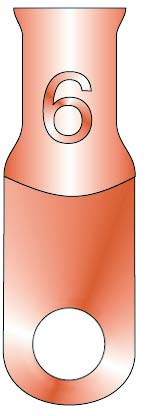

Lug Rings
| WIRE RANGE A.W.G. | STUDSIZE | INSULATIONMATERIAL |
| 8 | #10 | Bare, Vinyl and Copper solder tube |
| 8 | 1/4″ | Bare and Vinyl |
| 8 | 5/16″ | Bare, Vinyl and Copper solder tube |
| 8 | 3/8″ | Bare, Vinyl and Copper solder tube |
| 8 | 1/2″ | Bare and Vinyl |
| 6 | #10 | Bare, Vinyl and Copper solder tube |
| 6 | 1/4″ | Bare, Vinyl and Copper solder tube |
| 6 | 5/16″ | Bare, Vinyl and Copper solder tube |
| 6 | 3/8″ | Bare, Vinyl and Copper solder tube |
| 6 | 1/2″ | Bare and Vinyl |
| 4 | #10 | Bare |
| 4 | 1/4″ | Bare, Vinyl and Copper solder tube |
| 4 | 5/16″ | Bare, Vinyl and Copper solder tube |
| 4 | 3/8″ | Bare, Vinyl and Copper solder tube |
| 4 | 1/2″ | Bare, Vinyl and Copper solder tube |
| 2 | 1/4″ | Bare and Copper solder tube |
| 2 | 5/16″ | Bare and Copper solder tube |
| 2 | 3/8″ | Bare and Copper solder tube |
| 2 | 1/2″ | Bare and Copper solder tube |
| 1 | 3/8″ | Copper solder tube |
| 1 | 1/2″ | Copper solder tube |
| 1/0 | 3/8″ | Bare and Copper solder tube |
| 1/0 | 1/2″ | Bare and Copper solder tube |
| 2/0 | 3/8″ | Bare and Copper solder tube |
| 2/0 | 1/2″ | Bare and Copper solder tube |
